I wouldn’get the Velcro off even if I tried, I only use the duct type back on the velcro, nothing else.
What I do is I make sure the surface of the pedal is clean (little bit of alcohol rub to make sure) and then I round the edges of the velcro with scissors before I attach it to the pedal. If the velcro comes off, it is always at the edges, so rounding them off will take care of that, at least a bit.
At some point, it will come off, because the duct tape stuff dries out and becomes unsticky, but that should take some years.
Gorilla/ Super Glue. Although you are against it, it is my chosen method. I really can’t see any other way, sorry
After I have decided I am going to keep the pedal (that is an important point!) I glue the velcro to the back of my pedals. I did consider swapping the the locking method, until I saw how expensive it was. So Velcro it is

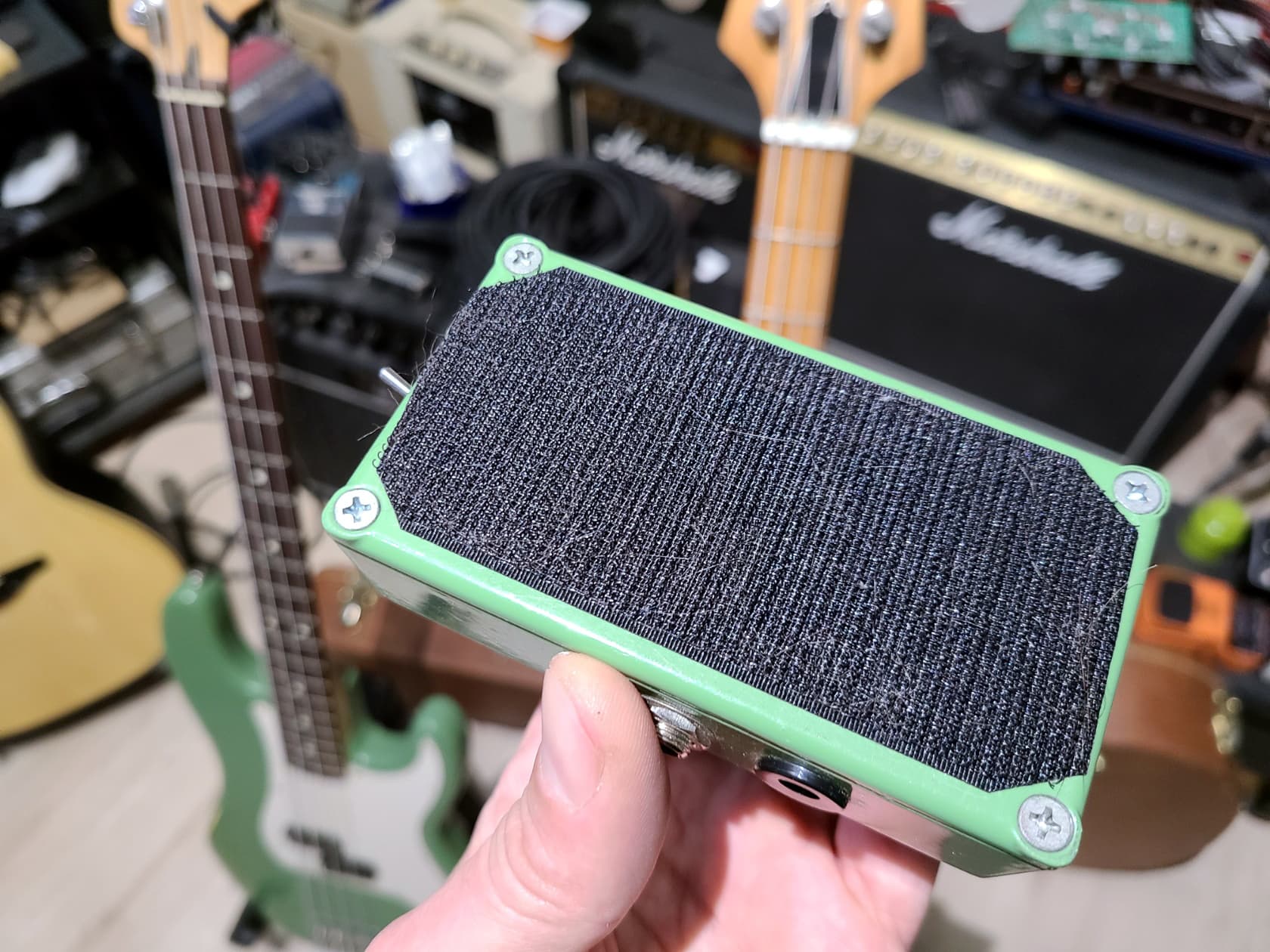

This velcro on this pedal (MI Audio GI Fuzz) is at least 20 years old, and that’s a pedal that actually was on my guitar pedalboard and I used it all the time. Never any problem and the velcro is still here :
This! Anything related to adhesives, 3M never fails.
I use this stuff to mount a garage door opener on the handlebar of my street bikes (triple digit speeds on the regular) and cameras on dirt bike helmets. It’s good stuff and it lasts.
If the pedal has rubber all along the bottom you will have a hard time getting the velcro to stick to it. So if you can remove the rubber the velcro will stick a lot better.
So just for anyone who is done with Velcro here are my ideas/research
One product uses bike chain links as a washer to the pedal and a screw into the (wood) board
I was thinking the same could be done with plastic plate/strap
Metal slotting straps with washers and longer pedal screws then building a board around them
As for the screws/sizes there is a general range of screw sizes they can vary by manufacturer. Here’s an overview of the most typical sizes and types you might encounter:
General Screw Sizes
Diameter (Thread Size)
M2 to M3.5 (Metric): Common for smaller screws on pedals, especially with international brands.
#4 to #6 (Imperial): Used by U.S.-based manufacturers, equivalent to M2.9-M3.5.
Length
Ranges from 6mm to 15mm (0.24" to 0.6") depending on pedal thickness and design.
Boss pedals, for example, often use screws around M3 x 8mm.
Thread Pitch
Metric: 0.4mm to 0.5mm is typical.
Imperial: Commonly 32 TPI (threads per inch).
Boss Pedals: M3 x 8mm Phillips screws.
MXR Pedals: Often use slightly smaller screws, like M2.5 or M3.
Probably too much info but I like info and sharing
If that doesn’t work I’ll probably go back to the 3M and my current board but as is I don’t have enough square inches for my pedals so a size upgrade is nice and I can set the old board up for my kid so we both win.
I never had any problem with this at all and I used the cheapest velcro I could find. Do you have an example of a pedal it would not stick to?
One of the modular boards is another option but they are expensive, velcro works just as well, and my general feeling for the board itself is to stay cheap because once the pedals are on it you never ever see it again anyway; buy a cheap Donner rack board instead and spend the money you save on a better power supply.
